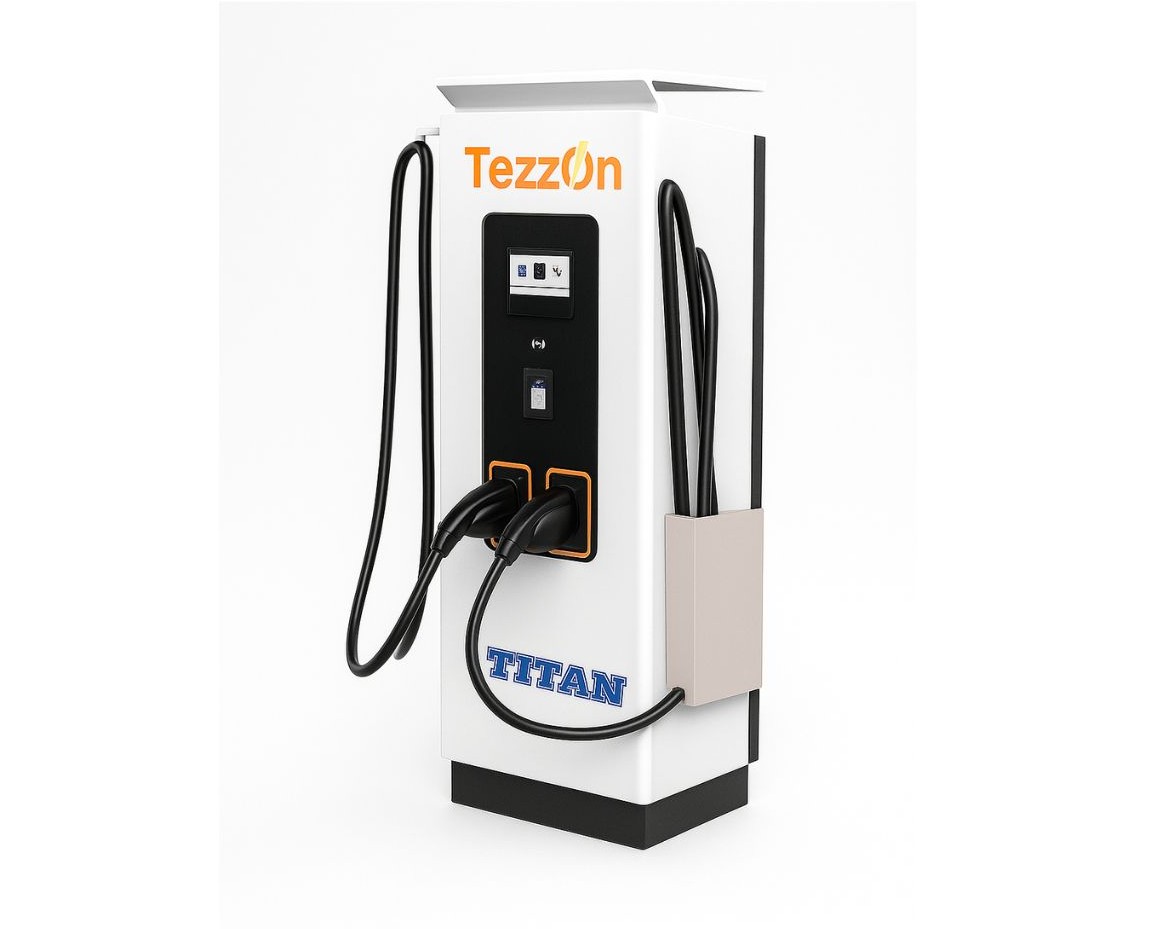

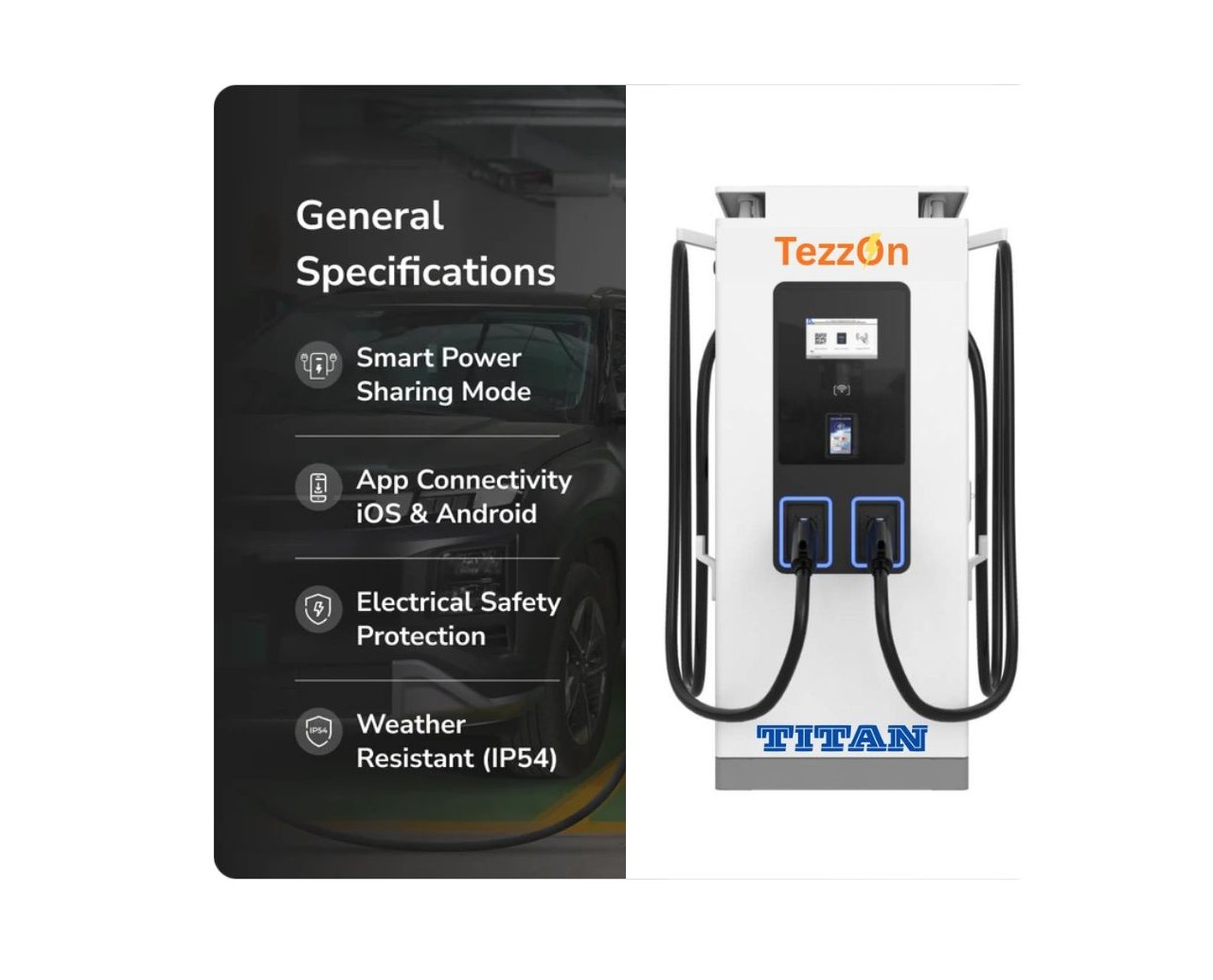

Tezzon Titan 120kW
Level 3 DC Fast Charger
Robust, floor-mounted level 3 DC fast charger with dual CCS2 charging ports.
Power Rating: 120kW
Compatibility: 🚗 4 Wheeler
Connector type: Dual CCS2 Charging Ports
Wide voltage range (150-1000V DC)
Key Features
- Max power output up to 120kW
- High charging efficiency of 95%
- Dual CCS-2 Charging Ports
- Operates reliably in extreme temperatures (-30°C to 55°C)
- Floor-Mounted Installation
Comprehensive product information & specifications
Technical Specifications
Power Specifications
- Max Output Power: 120kW
- Input Voltage: 260-480V AC
- Input Frequency: 50/60Hz
- Output Voltage: 150-1000V DC
- Max Output Current: 0-250A DC
- Efficiency: ≥95.2% (Full load)
Physical & Build
- Number of Charging Points: CCS2 × 2
- Cable Length: 5m (Customizable)
- Dimensions (W×D×H): 852×700×1960mm
- Weight: 470kg
- Mounting: Floor-mounting
- Protection Degree: IP54
Environmental & Build Quality
Environmental Specs
- Environment Temperature: -30°C to 55°C
- Storage Temperature: -40°C to 70°C
- Relative Humidity: 5%-95% non-condensing
- Altitude: Up to 2,000m
- Cooling: Forced air cooling
Build & Durability
- Housing Material: Stainless steel spraying
- Mechanical Impact: IK10
- Noise Emission: <75dB< /li>
- Stand-by Consumption: <30W< /li>
- Display: 12.1" TFT Color Touch
Protection & Safety Features
Electrical Protection
- Over Voltage Protection
- Under Voltage Protection
- Over Load Protection
- Short Circuit Protection
- Over-temp Protection
- Surge Protection
Smart Features
- OCPP 1.6 JSON Protocol
- Integrated 4G/WiFi Connectivity
- RFID & QR Code Authentication
- Emergency Stop Button
- LED Indicator Light
- Type A RCBO
High-Performance EV Fast Charger
Tezzon Titan 120kW is a robust, high-performance DC fast EV charger, offering power outputs of 120kW. With dual CCS2 charging points and wide voltage range (150-1000V DC), it delivers efficient charging at ≥95.2% efficiency.
Designed for reliability and performance, the Titan 120kW operates seamlessly in extreme temperatures ranging from -30°C to 55°C, making it ideal for diverse environmental conditions across India and beyond.
The floor-mounted design with stainless steel housing ensures durability and professional aesthetics, while the 12.1" TFT color touchscreen provides an intuitive user interface for seamless charging operations.
Why Choose Tezzon Titan 120kW?
120kW Ultra-Fast
Industry-leading charging speed
95% Efficiency
High energy conversion rate
Dual CCS2 Ports
Charge two vehicles simultaneously
Extreme Weather
-30°C to 55°C operation
